SWM-8000 STARCH MOGUL LINE

Mogul Plant

Detailed description

Specification

Model	SWM-SM8000
Production capacity	1-1.5 tons/h (depending on the shape of candy)
Steam consumption	1200kg/h
Steam pressure	P﹤0.8Mpa
Compressed air consumption	7m³/min
Compressed air pressure	P=0.6-0.8Mpa
Water consumption	2000L/min
Power	260kw(depending on the machine type)
Weight of machine	30000kg

Application

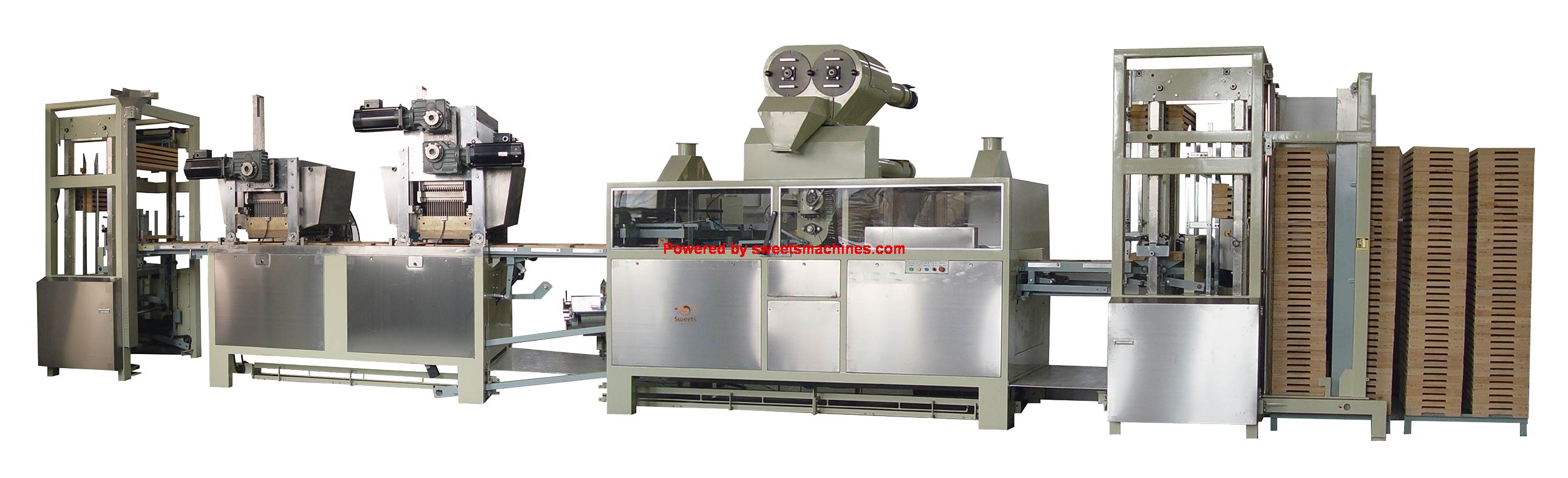

The SWM-8000 Starch Mogul Line is specially designed for producing different kinds of gummy candies. It has the advantages of high quality and output, easy and stable operation, and good flexibility. The whole plant includes kitchen system, mogul plant, starch conditioning system, starch collecting and recycling system, and product finishing system. We have different types of depositors to meet customers’ requirements for flexibility and speed. The depositing type could be swing, one shot and servo driven for center-filled and striped gummies.

It also need other supporting facilities, such as around 2000 square meters factory for the project, steam boiler, screw air compressor, big glucose tank, rotary wheel dehumidifiers, chillers, dry rooms, etc..

It requests enough market to sell the products which they will be produced by the production line.
