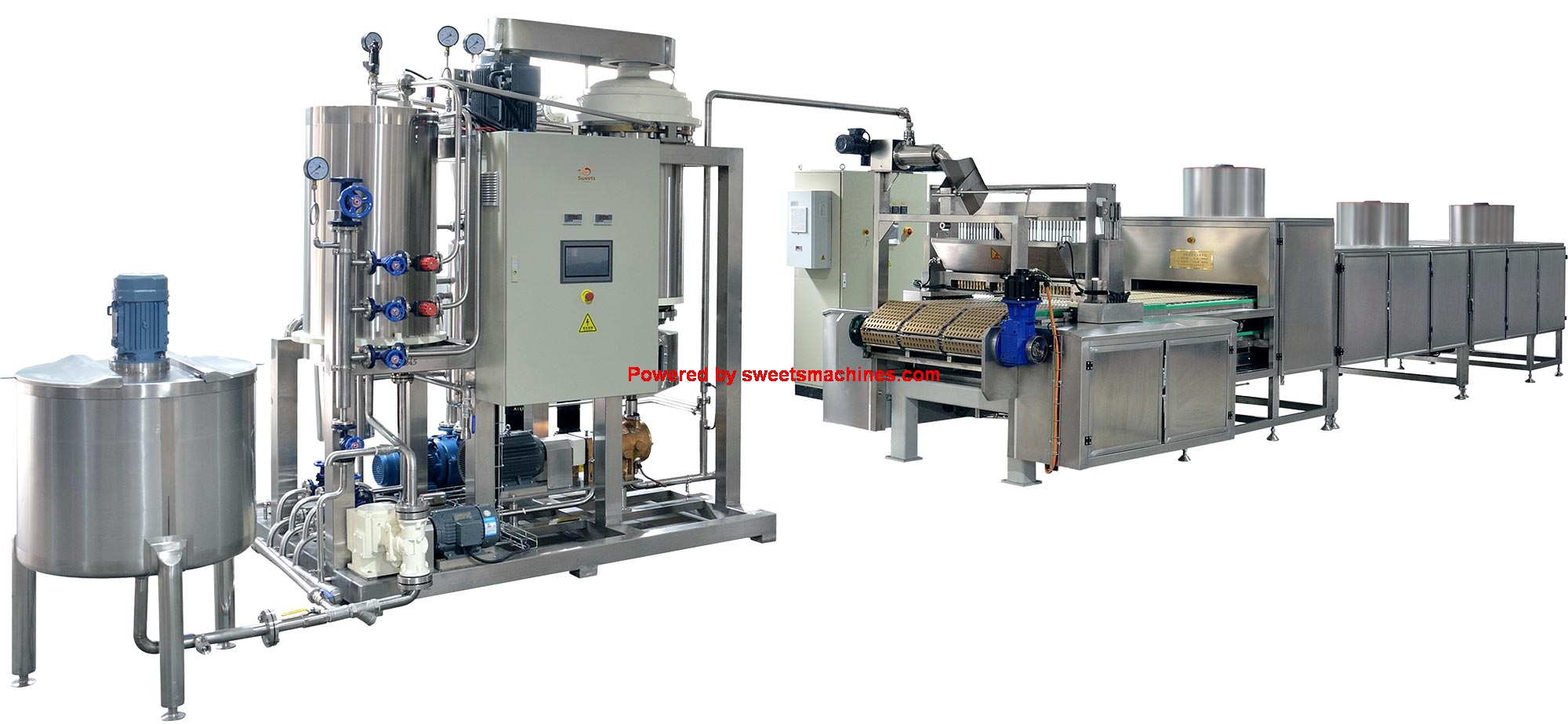

SWM-HCD HARD CANDY DEPOSITING LINE

We have hard candy depositing machine from 150kgs to 600kgs/hour.

Detailed description

Specification

Model	SWM-HCD
Production capacity	300-600kg/h
Depositing speed	40-55strokes/min
Steam consumption	450kg/h
Steam pressure	P﹤0.7Mpa
Compressed air consumption	0.3m³/min
Compressed air pressure	P=0.4-0.6Mpa
Water consumption	2200L/h
Power	30-45kw
Sizes of machine	13×2×2.56m
Weight of machine	6000kg

Application

The SWM-HCD series Hard Candy Depositing Line is the advanced confectionery machine for making various kinds of hard candies, such as clear hard candies, 2-color, striped hard candies, layered hard candies, center-filled products, etc. The line offers high output, good quality of products, automatic operation and high levels of production efficiency. The line is continuously depositing syrup from Microfilm Cooker at final moisture into metal moulds. This makes candies have smooth surface finish and good taste.

There are two types of hard candy depositing machines: mechanical depositing machines and servo driven with motion controller or PLC depositing machines for making hard candies with center filling.

The capacity of the mechanical depositing machines is from 300kgs to 450kgs and the servo driven depositing machines is from 300kgs to 600kgs.
